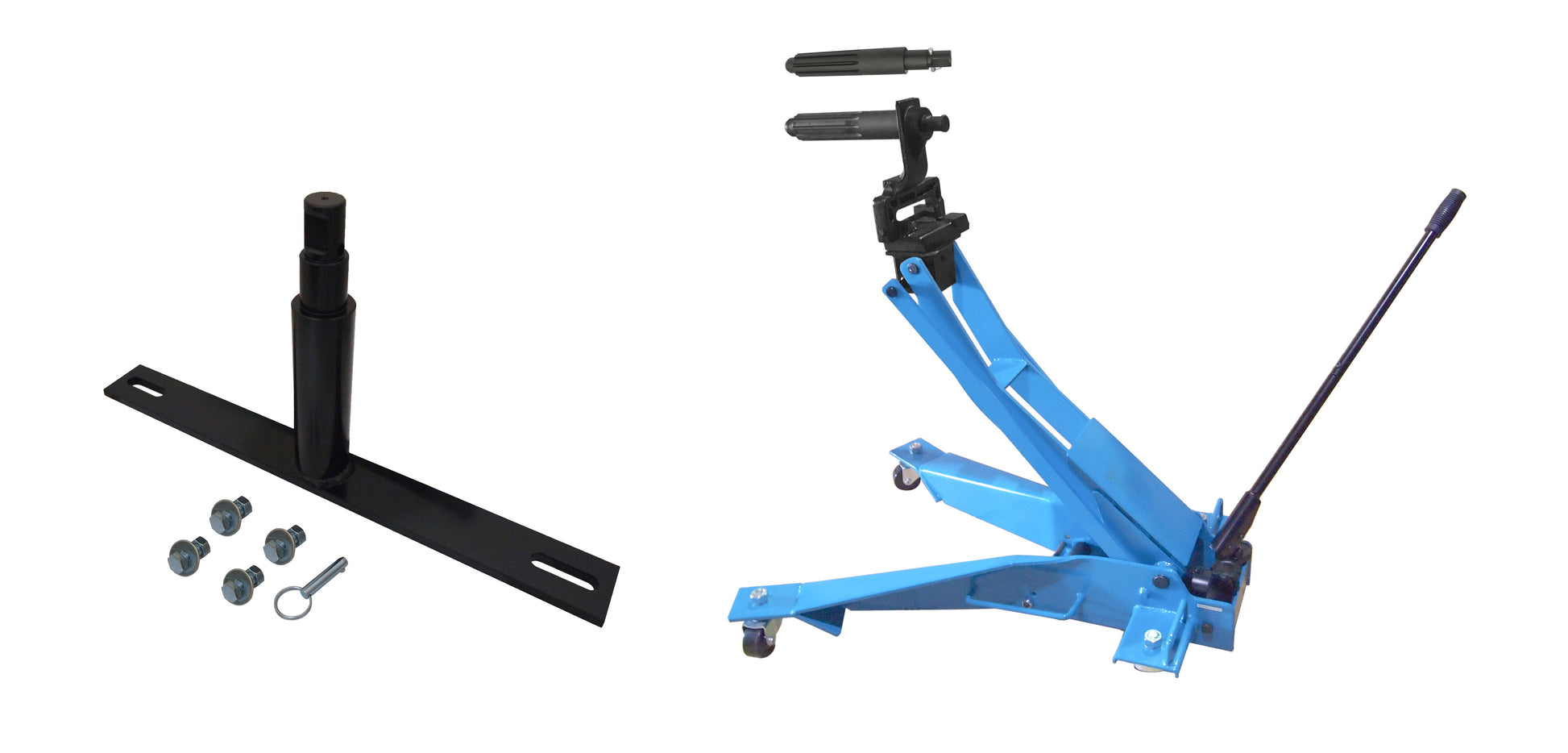

HCB-A2273 - TRUCK CLUTCH & FLYWHEEL HANDLER (LOW CLEARANCE)

• Clutch/flywheel removal and installation becomes a one man job.

• Tilting saddle enables clutch to be positioned in either horizontal position for clearing underneath truck or vertical position for installation and removal.

• Adjustment bolt on saddle aligns clutch and flywheel.

• Spline shaft rotates 360 degrees, turns left and right for clutch and engine alignment. 2” and 1 3/4” spline shafts included.

• Conveniently located release valve and 360 degree rotating pump handle allow jack to be operated in any work position.

• Open stance for ease of access to the work

• Unique linkage design raises the load from horizontal to vertical as the pump is cycled

• Eliminates any lifting of the clutch by the operator • Handles 14 inch and 15-1/2 inch clutch assemblies weighing up to 250 pounds

• Pump handle rotates a full 360 degrees for use in any position • Handles 14" and 15½" clutch assemblies weighing up to 250 lbs. Swivel casters provide easy maneuverability. Includes a 2" splined shaft with a 1¼" pilot to aid in alignment. • 360º swivel head.

• Minimum height of 15" allows access below side faring.

• When raised, centerline of clutch will be 38¼" off floor.

• Floor space is 32-3/8" long by 24½" at widest point.

• Makes the task an easy, one-person job.
